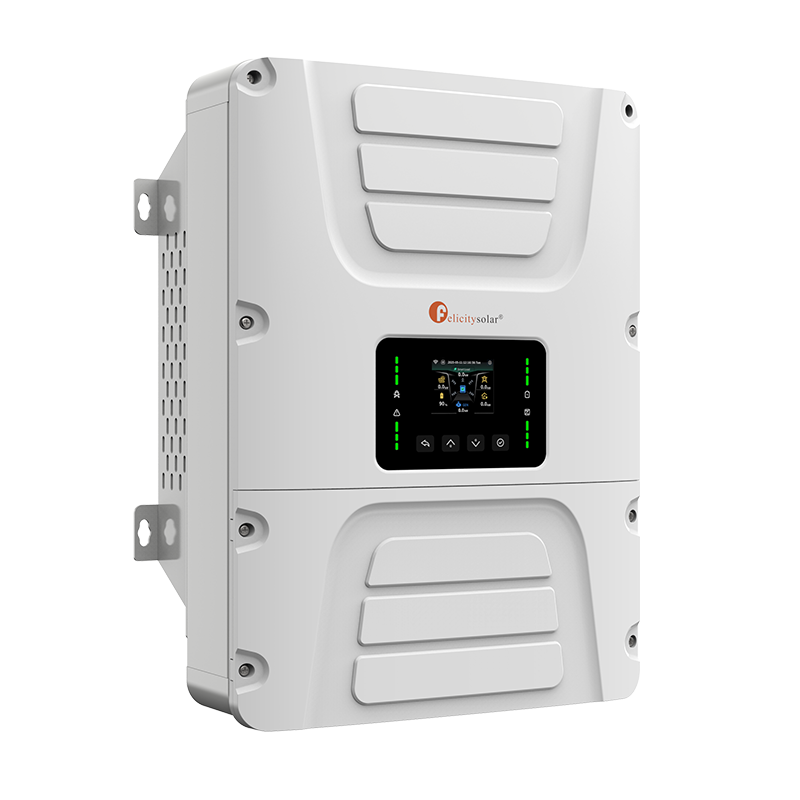

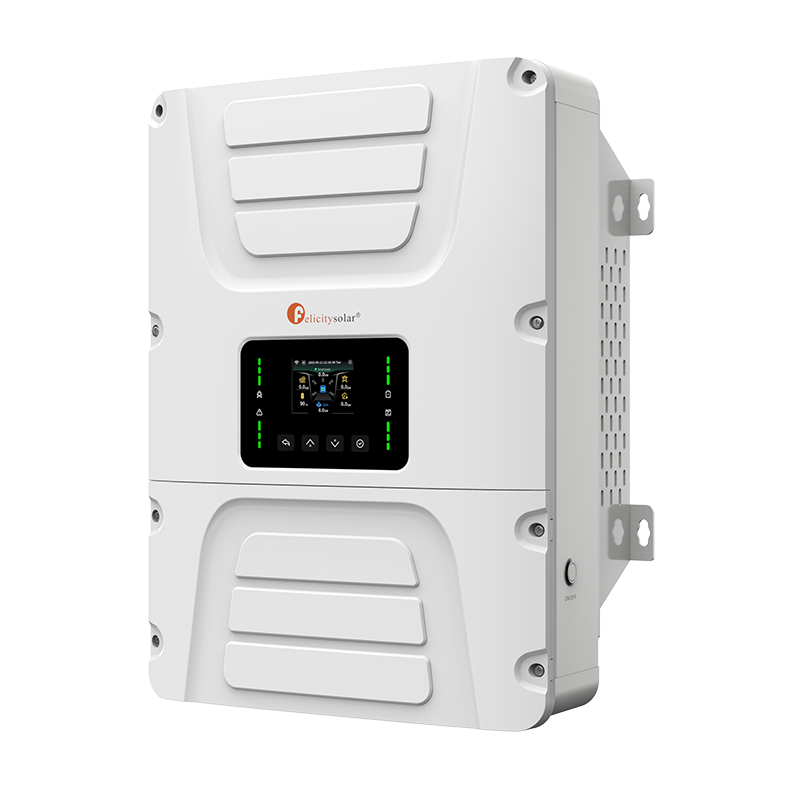

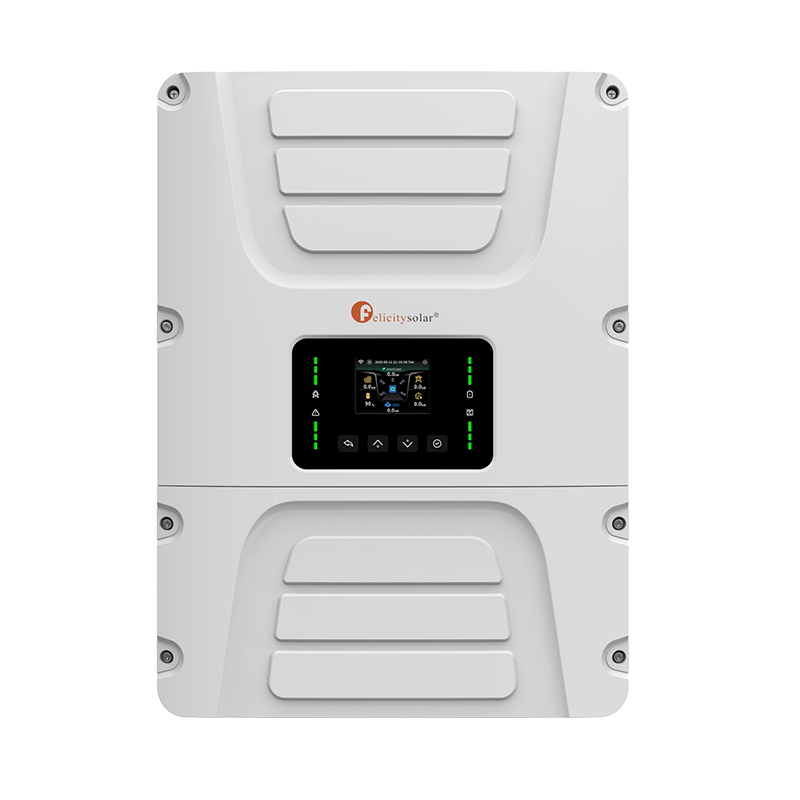

Felicity Inverter | IVAM6048P1G1

The Felicitysolar IVAM6048P1G1 is a 6 kW single-phase off-grid high-frequency solar inverter designed for residential and small business energy storage. Operating on a 48V battery system, it functions as a highly protected all-in-one unit integrating an inverter, an upgraded dual MPPT solar charge controller, and an AC battery charger.

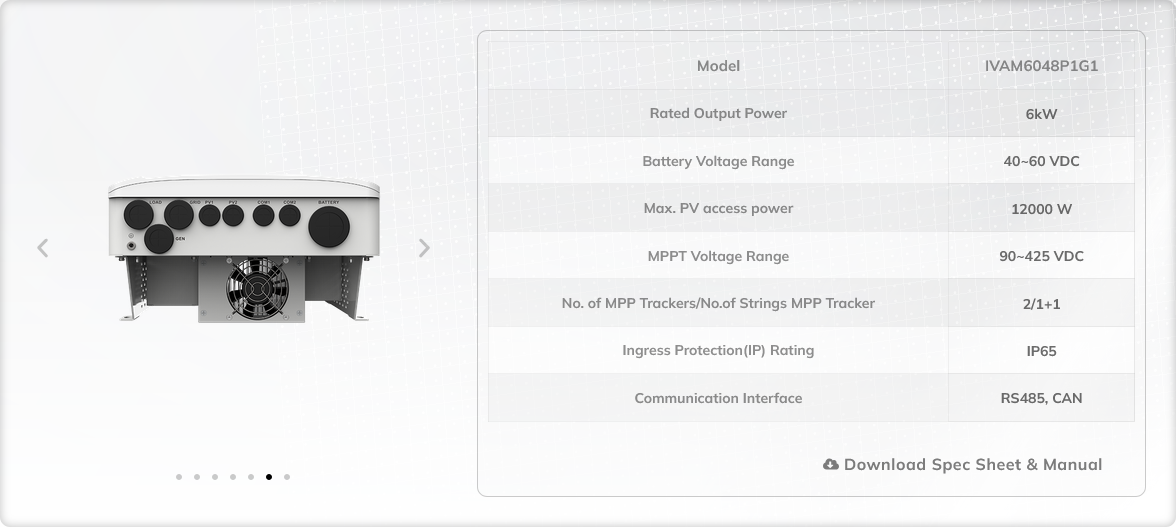

• Rated Output Power: 6,000 W continuous (Pure Sine Wave, 230V AC, 50Hz/60Hz)
• Peak Power: 2x rated power (12,000 W) for up to 10 seconds
• Battery Requirements: 48V nominal voltage (40–60V working range); compatible with Lithium-ion and Lead-acid batteries
• Max. Charge/Discharge Current: 135 A
• Solar PV Input Capacity: Accepts up to 9,600 W of PV power (some retail listings cite up to 12,000 W maximum capability)
• Solar Controller: 2 independent MPPT trackers (1 string per tracker, 20A + 20A max operating current)
• MPPT Voltage Range: 90 V to 425 V DC (500 V maximum open-circuit voltage)

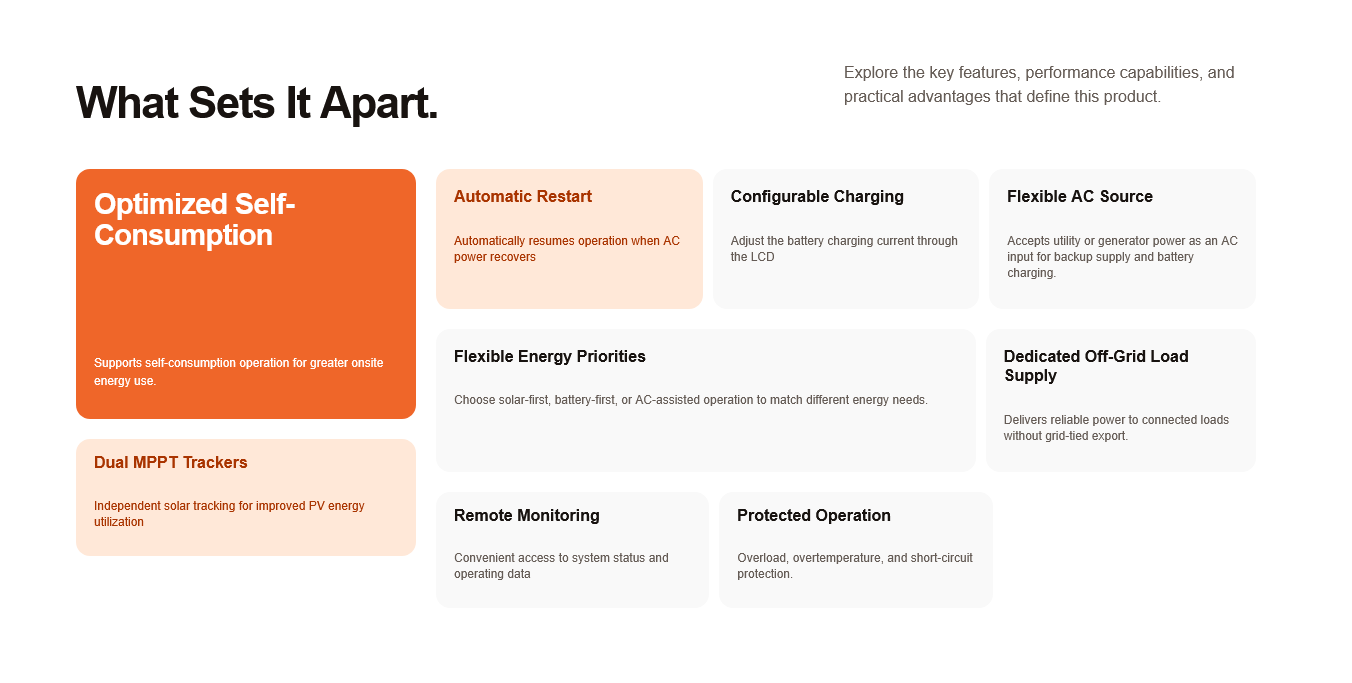

Key Features & Capabilities
• IP65 Ingress Protection: Unlike older generation indoor units, its weatherproofing allows it to be installed outdoors or in unheated, dusty environments.

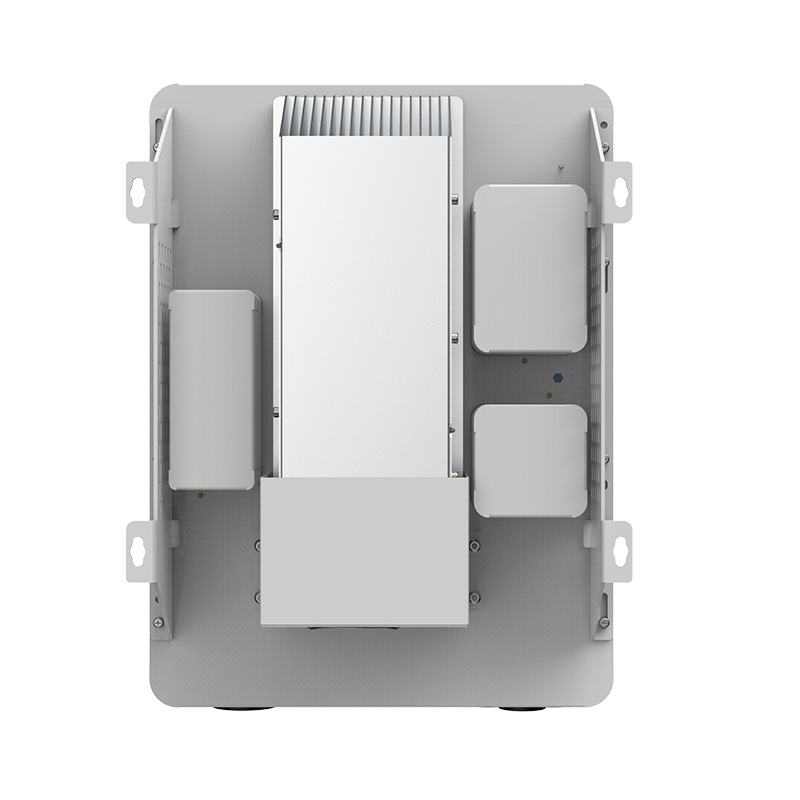

• Dual Cooling System: Features comprehensive thermal management using a large passive heatsink paired with active cooling fans for stable high-load performance.
• Source-Priority & Smart Allocation: Intelligently balances Solar, Battery, and AC backup inputs. It accepts grid power or a generator via dedicated ports for battery charging and load bypass without exporting to the utility grid.
• Parallel Expansion: Scalable framework allowing up to 10 to 12 units to link in parallel to reach up to 72 kW of capacity.
• Connectivity & Monitoring: Features a front LCD touchscreen interface alongside built-in Wi-Fi/LAN capabilities for remote fleet monitoring through the F Solar application.

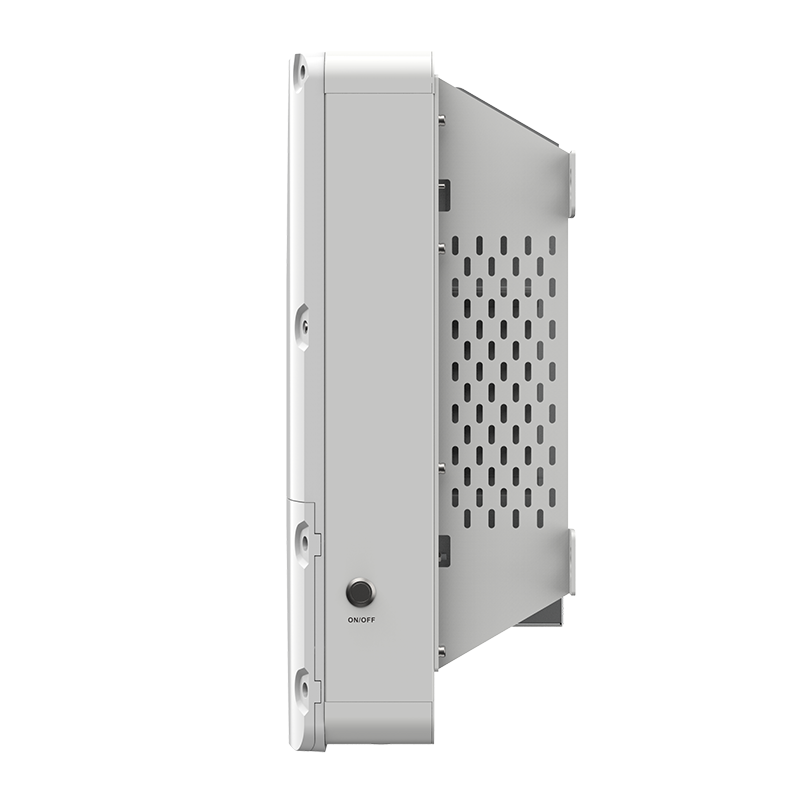

• Physical Profile: Weighs 13.5 kg with dimensions measuring 320 x 432 x 183 mm.

Felicity

5 Years
