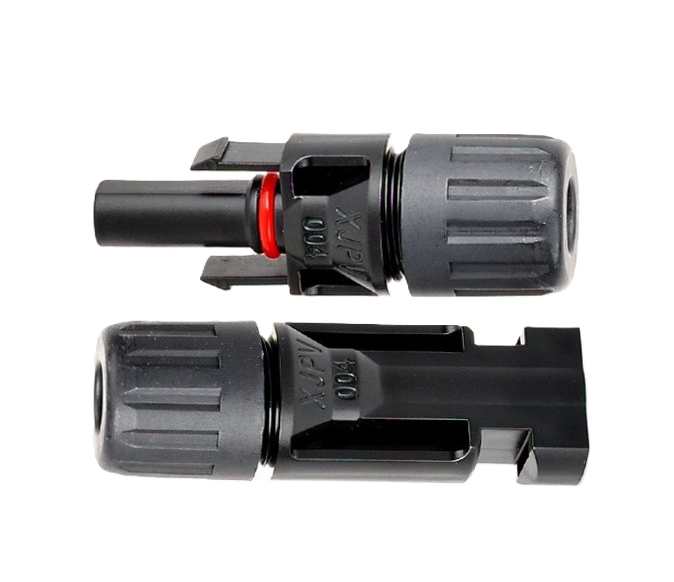

MC4 Connectors (Male and Female)

≡ Universal compatibility: Used by most solar panel manufacturers.
≡ Secure and watertight connection: Designed to withstand weathering and ensure efficient power transmission.
≡ Easy installation: Incorporates metal shanks for crimping wires with specific tools.
≡ Safety design: Locking system that prevents accidental disconnection.
≡ Use and Installation: Photovoltaic modules are equipped with MC4 connectors from the factory. When making a connection, it is essential to ensure that the wiring follows the proper color code and that the connectors fit with their respective opposite poles

≡ Rated current: 30A (2.5 - 4.0mm²)
≡ Maximum rated voltage: 1000V (ICE)
≡ Degree of protection: IP67
≡ Protection class / overvoltage category II
≡ Fireproof class : UL94-V0
≡ Temperature range: -40 to +85 ° C
≡ Head temperature: 100 ° C
≡ Tested according to : DIN V VDE 0126-3 / 06.12
