Description:
LDF 5

Features:

Specifications:

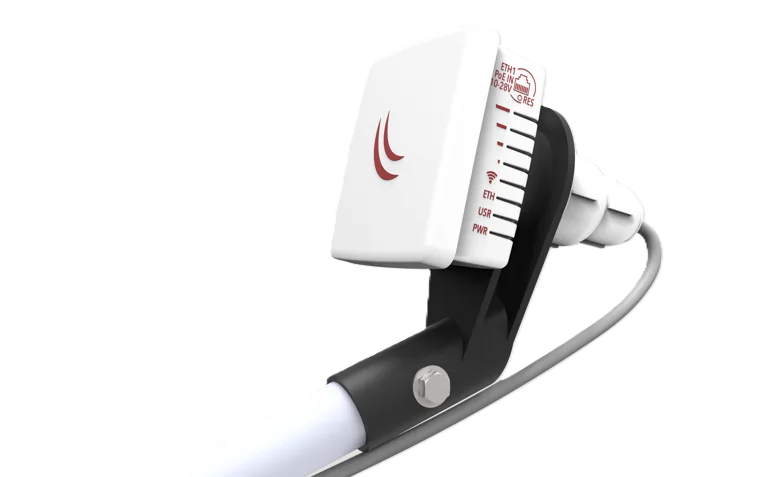

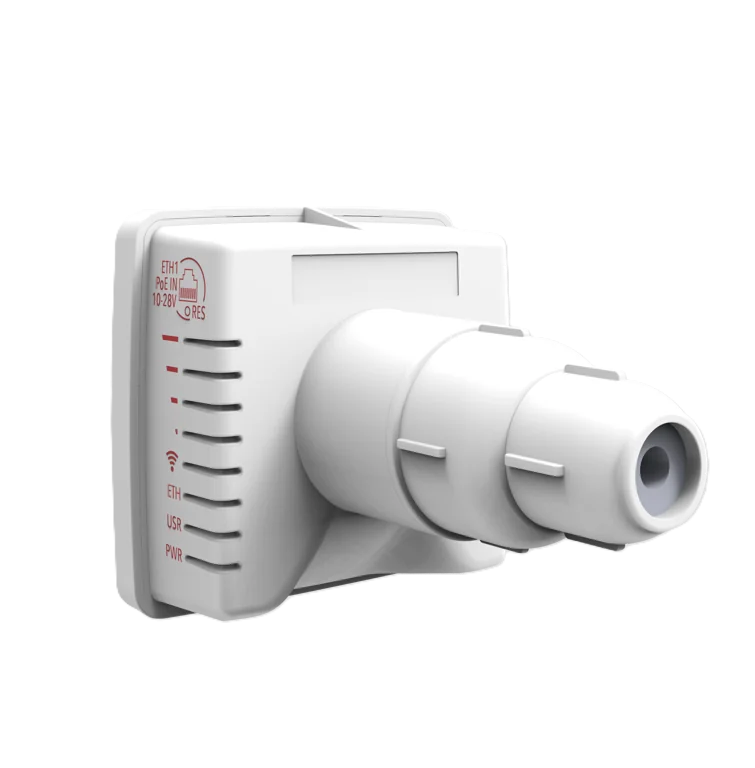

The LDF (Lite Dish Feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.
This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.
Using a dish of up to 100cm in diameter, it is possible to obtain antenna amplification of up to 33dBi. The device comes preinstalled with RouterOS and is ready to use.
- Product code: LDF 5
- Architecture: MIPSBE
- CPU: IPQ-5018
- CPU core count: 1
- CPU nominal frequency: 600 MHz
- Dimensions: 84x84x115mm
- RouterOS license: 3
- Operating System: RouterOS
- Size of RAM: 64 MB
- Storage size: 16 MB
- Storage type: Flash
- MTBF Approximately: 100'000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- Number of DC inputs: 1 (PoE-IN)
- Max power consumption: 6 W
- PoE in: Passive PoE
- Cooling type: Passive
- PoE in input Voltage: 10-30 V

Brand: MikroTik

Warranty:
6 Months
