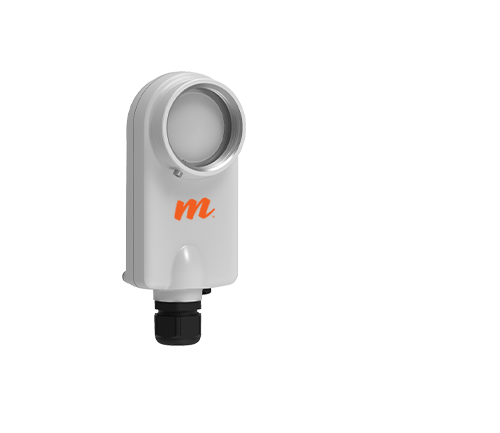

C5x

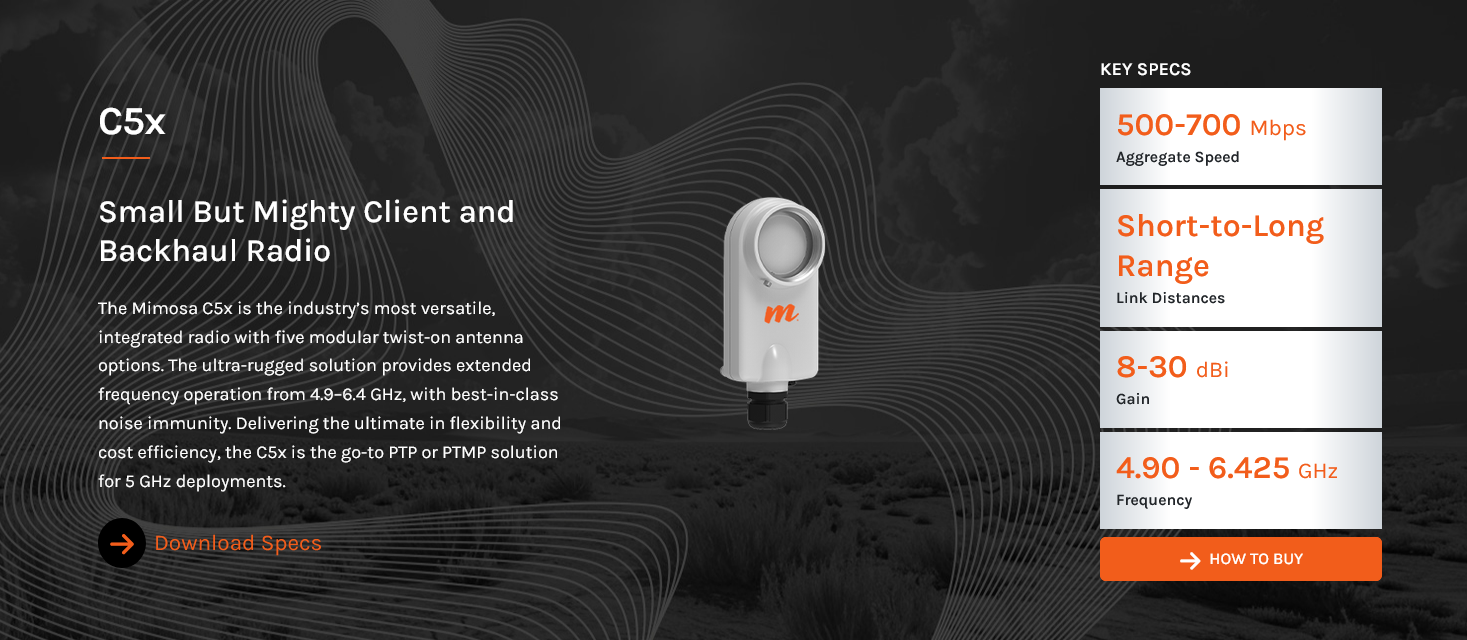

The Mimosa C5x is the industry’s most versatile, integrated radio with five modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments.

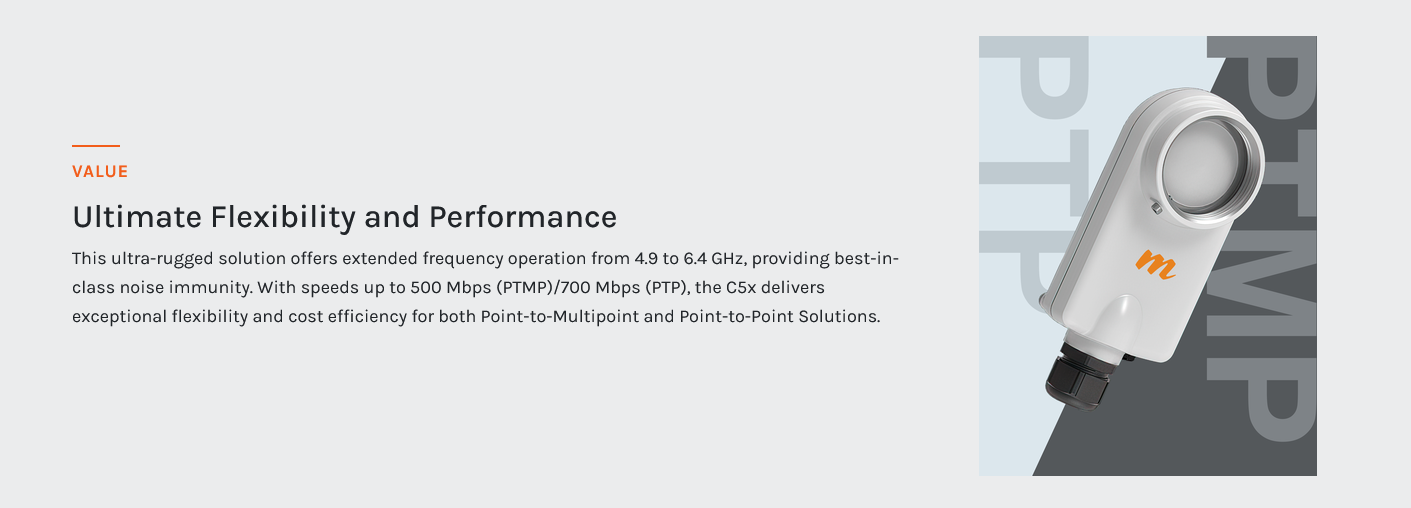

- Ultimate Flexibility and Performance
This ultra-rugged solution offers extended frequency operation from 4.9 to 6.4 GHz, providing best-in-class noise immunity. With speeds up to 500 Mbps (PTMP)/700 Mbps (PTP), the C5x delivers exceptional flexibility and cost efficiency for both Point-to-Multipoint and Point-to-Point Solutions.
- Incredible RF Performance
Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.
- Ultra Rugged and Compact
The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather with a rating of IP-67.

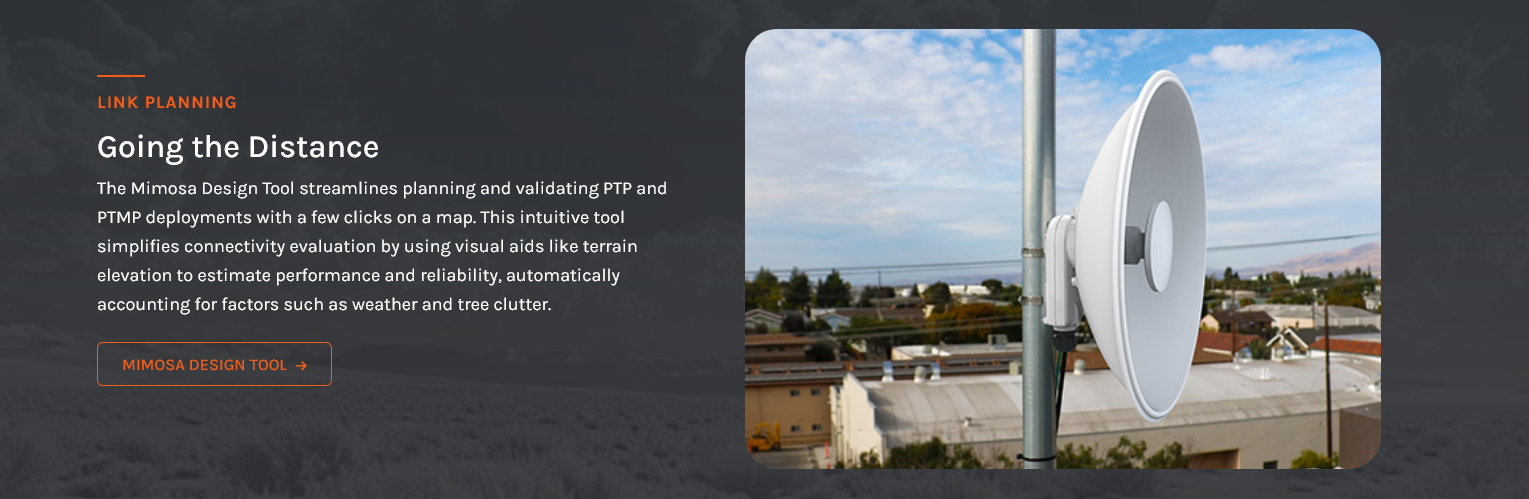

- Going the Distance
The Mimosa Design Tool streamlines planning and validating PTP and PTMP deployments with a few clicks on a map. This intuitive tool simplifies connectivity evaluation by using visual aids like terrain elevation to estimate performance and reliability, automatically accounting for factors such as weather and tree clutter.
- Gain: 8~30 dBi
- Link Distances: Short-to-Long Range
- Aggregate Speed: 500~700Mbps
- Frequency: 4.90 - 6.425GHz
- Dimensions: 175mm h x 70 mm w x 61 mm depth, 37 kg(0.82lbs)
- Power Consumption: 12.9 W Max
- Max Output Power: 27 dBm
- IP Rating: IP67
